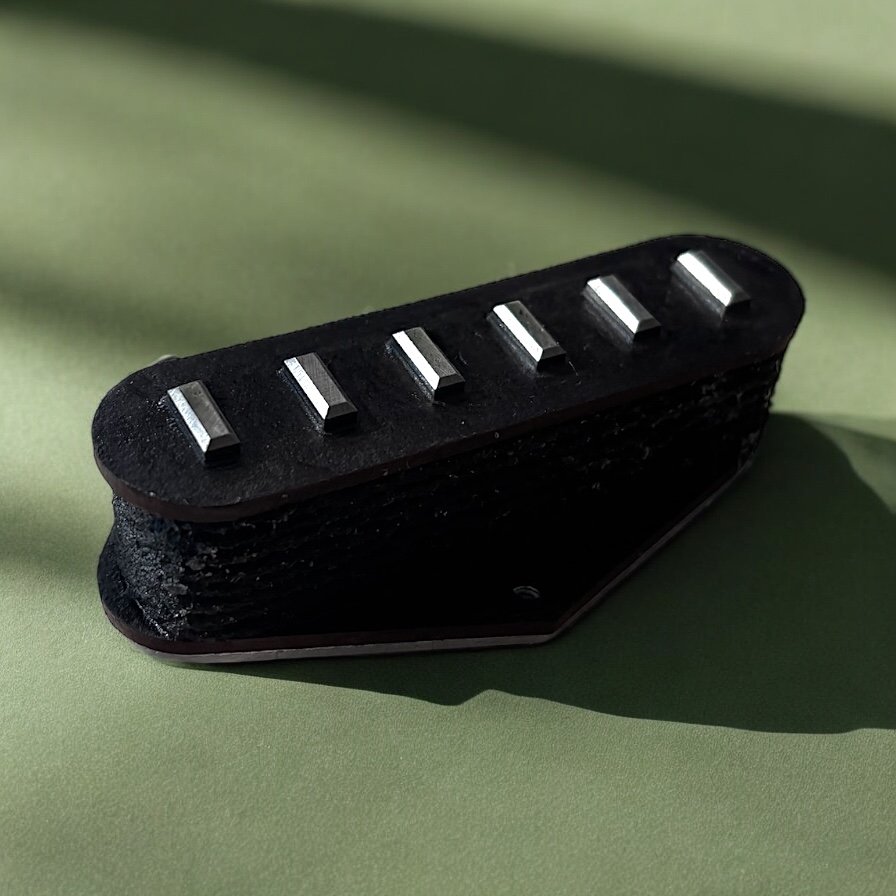

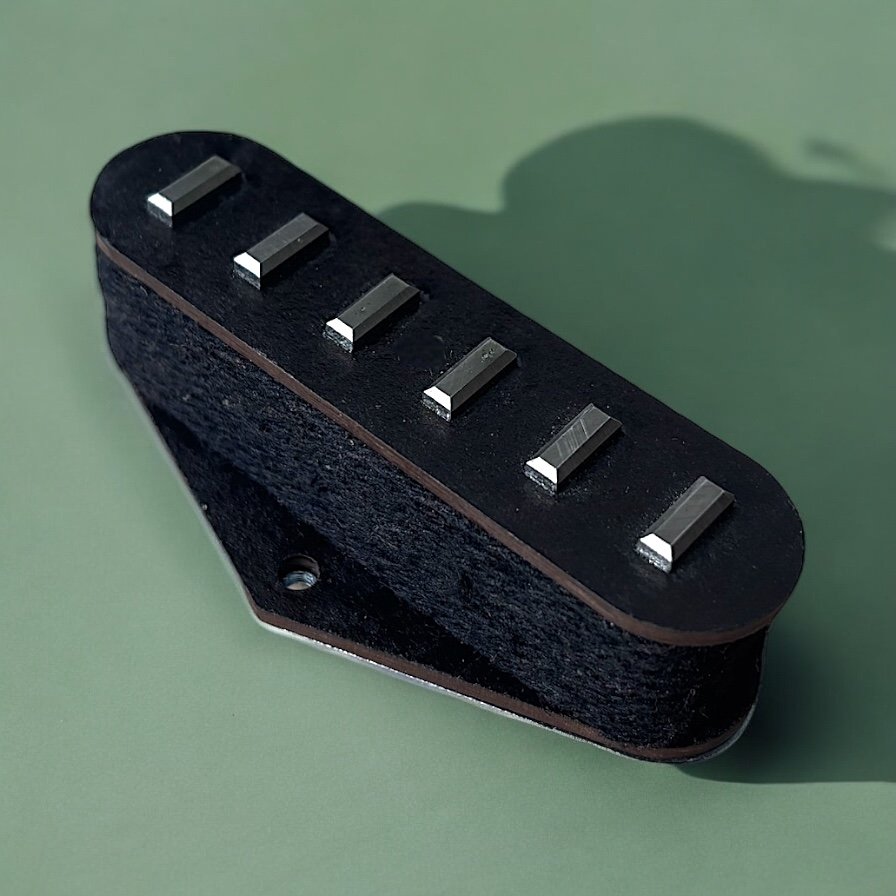

Tele Staple Bridge Pickup
This Telecaster bridge pickup features a unique staple magnet design that delivers a bold, articulate sound with enhanced clarity and punch. Wound with precision using 42 AWG copper wire, the coil achieves a DC resistance of 8k, ideal for balancing dynamic response with a rich midrange character.
The pickup’s inductance measures 2.9H, a key factor in its tonal profile. This inductance value shapes the resonance frequency, placing it in a sweet spot for warm lows and chiming highs, making it especially effective for country twang, blues grit, and rock edge. The use of staple magnets creates a broader magnetic field, resulting in a more even string response and a subtly compressed attack that many players enjoy.
Scientifically speaking, the combination of inductance and resistance in this coil forms an RL (resistance–inductance) circuit, which filters out certain frequencies and enhances others. This specific winding and magnet structure contribute to a sharper Q factor and a resonant peak that lends presence and definition without harshness.
All in all, the Staple Tele bridge pickup offers a refined blend of vintage character and modern clarity without excessive alteration to the guitar.
Specs:
Pole Spacing: 54mm
Wiring: White- Live, Black- Ground
Resistance: 8k (+/- 5%)
Inductance: 2.9H (+/- 5%)
Magnets: Alnico V
Pole Style: Flush
Wire: 42AWG Poly
Handmade in Manchester UK
