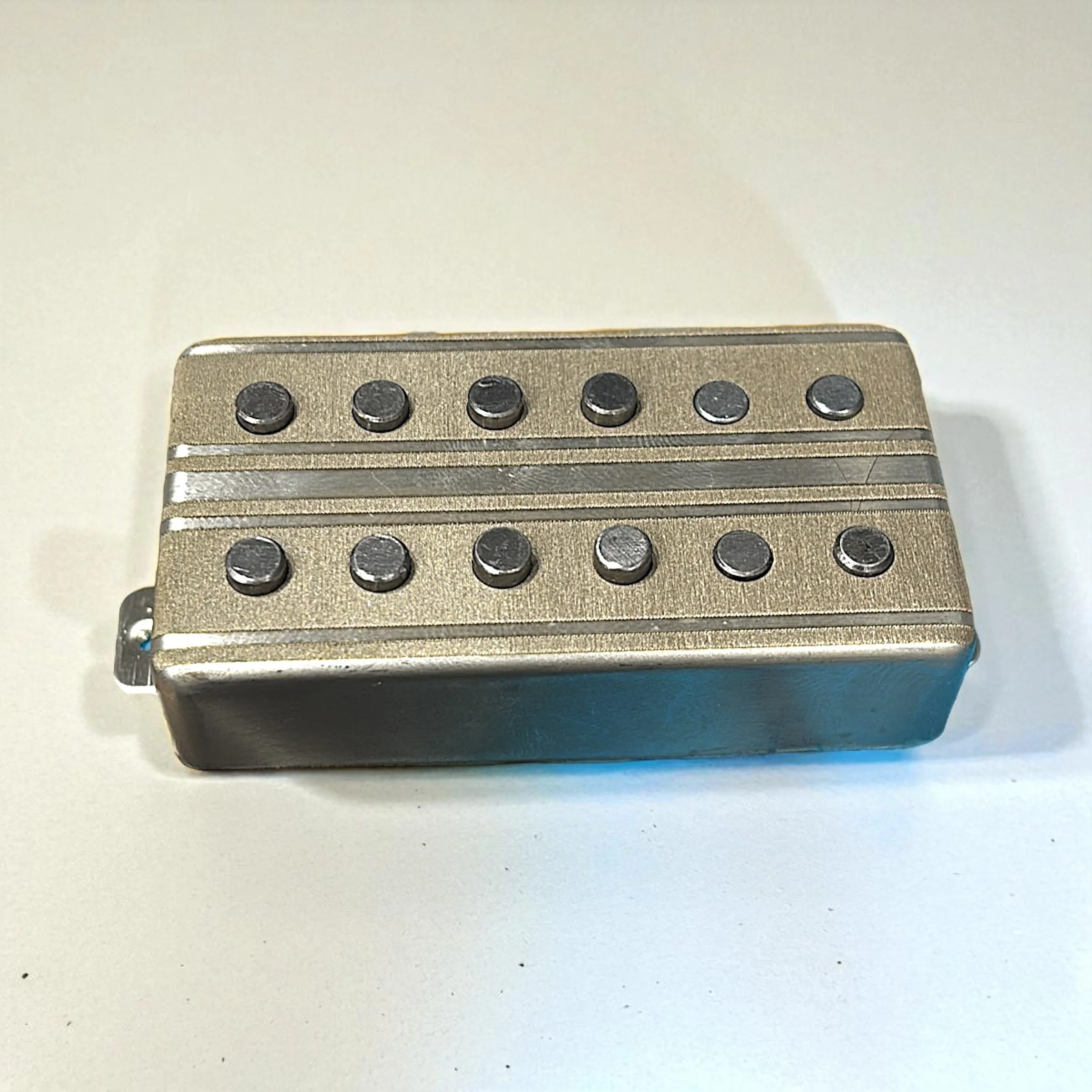

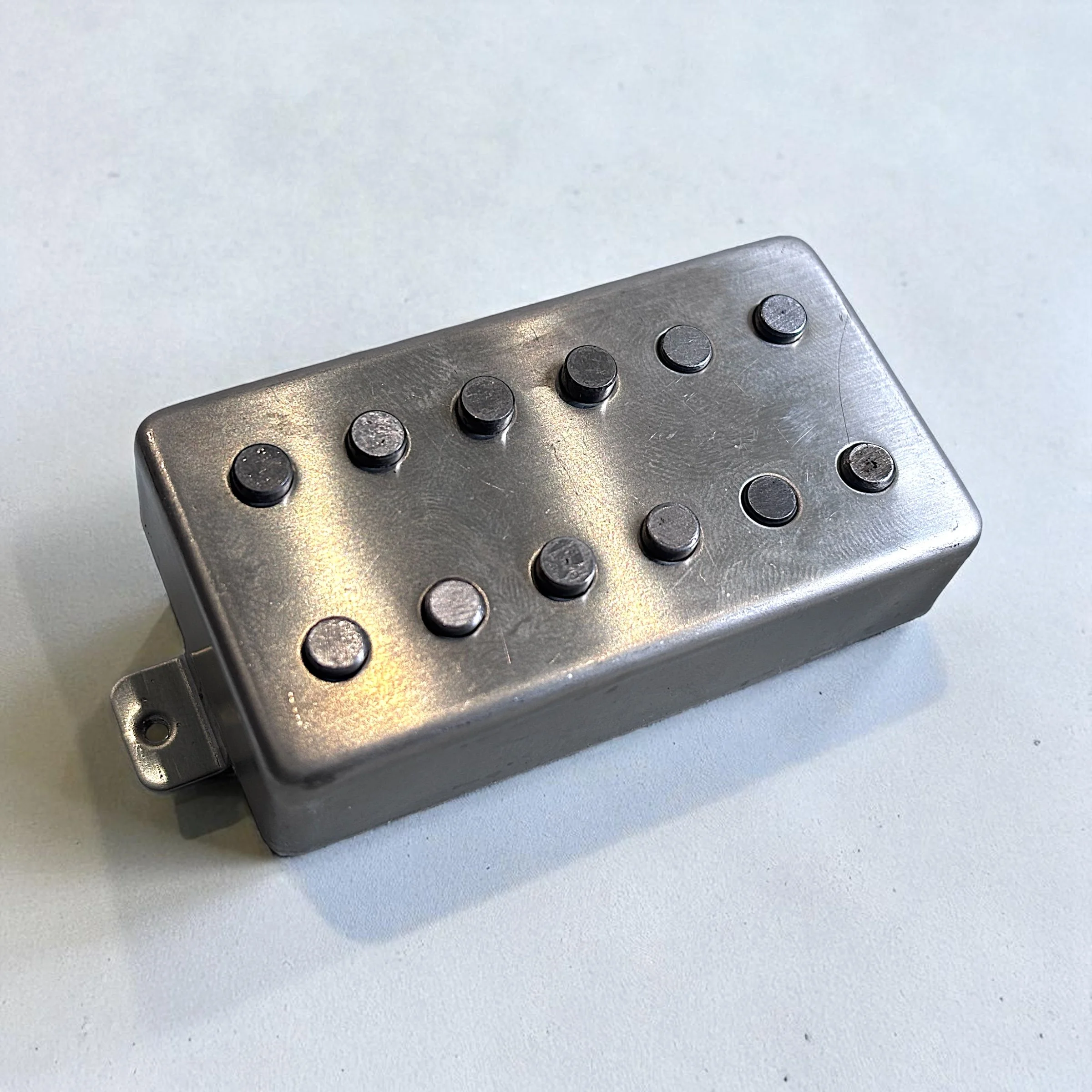

The Green Stratbucker is a humbucker-sized pickup built from two true Strat-style bobbins. Each coil is wound with 6,500 turns of 42 AWG plain enamel wire and fitted with Alnico V rod magnets, giving it the same magnetic structure and clarity you’d expect from a vintage Stratocaster pickup.
On the bench it measures around ~9kΩ DC resistance and ~2.4H inductance, putting it in medium-output territory. In series wiring, the Stratbucker delivers a punchy, dynamic humbucker tone with more single-coil attack than a traditional PAF. Switch it into parallel and the output drops while the highs open up, producing a scooped, glassy response reminiscent of a Strat in-between position. Coil-splitting unlocks either bobbin individually for authentic Strat sparkle.
If you select to have a custom engraved cover, please email me at leigh@greenpickups with your design! You will receive a proof prior to fulfilment.
Specifications:
Wiring: Black/bare = ground, Green = hot, Red/White = coil split
Resistance: ~9kΩ (±5%)
Inductance: ~2.0 Henries (±5%)
Wire: 42 AWG Plain Enamel
Magnet: Alnico V rod magnets
Mounting: Standard humbucker size
Cover: Optional open-coil or custom covers
Handmade in Manchester, UK.
